HIKMICRO Habrok 4k 2.0 Thermal Binocular LRF & 940nm Torch Kit

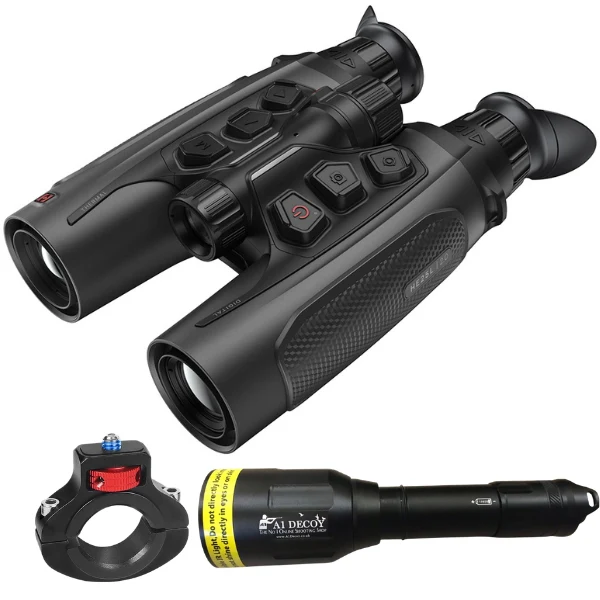

HIKMICRO Habrok 4k 2.0 Thermal Binocular LRF & 940nm Torch Kit includes the HIKMICRO HABROK 4K 2.0 Thermal Binoculars, a torch mount for the habrok and a 940 ir torch.

HIKMICRO HABROK 4K 2.0 Thermal Binoculars LRF

The HIKMICRO Habrok 4K 2.0 HE25L is a compact, high-performance multi-spectrum thermal and digital binocular designed for serious users who need versatility across daylight, low light, and night-time conditions. Combining thermal detection, true 4K digital imaging, and a precision laser rangefinder into one ergonomic platform, it delivers fast, confident situational awareness in all weather.

At its core is an ultra-sensitive 256 × 192 thermal sensor with <18mK NETD, paired with a 25mm f1.0 lens for dependable thermal detection out to 1200 metres. HIKMICRO’s HSIS shutterless imaging ensures smooth, uninterrupted viewing without image freeze, ideal for tracking moving targets or scanning dynamically changing environments.

For daylight use, a 4K UHD CMOS sensor and 60mm digital lens provide sharp detail and strong identification capability, while the dual-spectrum design allows instant switching between thermal and digital channels at the press of a button.

Tech Specs

Thermal Channel

• Sensor: 256 × 192 VOx, 12µm

• NETD: <18mK (@25°C, F1.0)

• Frame Rate: 50Hz

• Lens: 25mm F1.0

• Detection Range: Up to 1200m

• Magnification: 4.3x–17.2x (2×/3×/4×/5× digital zoom)

• Field of View: 7.0° × 5.3° (12.2m × 9.3m @100m)

• Minimum Focus Distance: 3m

Digital Channel

• Sensor: 1/1.8" Progressive Scan CMOS

• Resolution: 3840 × 2160 (4K UHD)

• Lens: 60mm F2.2

• Magnification: 5.5x–22.0x

• Minimum Focus Distance: 8m

IR & Night Performance

• IR Illuminator: Replaceable 940nm (default) / 850nm

• Night Viewing Range: Up to 400m

• Smart IR: Yes

Display & Optics

• Display: 0.49" OLED, 1920 × 1080

• Eye Relief: 15mm

• Exit Pupil: 8mm

• Diopter Adjustment: –5D to +3D

• Interpupillary Range: 60–74mm

Laser Rangefinder

• Max Range: 1000m

• Accuracy: ±1m

• Laser Class: Class 1 (905nm)

Features

• HSIS Shutterless Imaging

• Electronic Image Stabilisation (thermal & digital)

• Zoom Pro

• Picture-in-Picture (PIP)

• Hot Track & Hotspot Detection

• GPS & Digital Magnetic Compass

• Video, photo & audio recording

• Built-in 64GB EMMC storage

• Wi-Fi hotspot & local album

Power & Build

• Battery: Replaceable rechargeable Li-ion

• Runtime: ≥6.5 hours

• Charging: USB-C (5V / 2A)

• Protection: IP67 waterproof

• Operating Temp: –30°C to +55°C

• Weight: 895g (without batteries)

• Dimensions: 143.1 × 74.8 × 223.3mm

• Tripod Mount: 1/4"-20 UNC

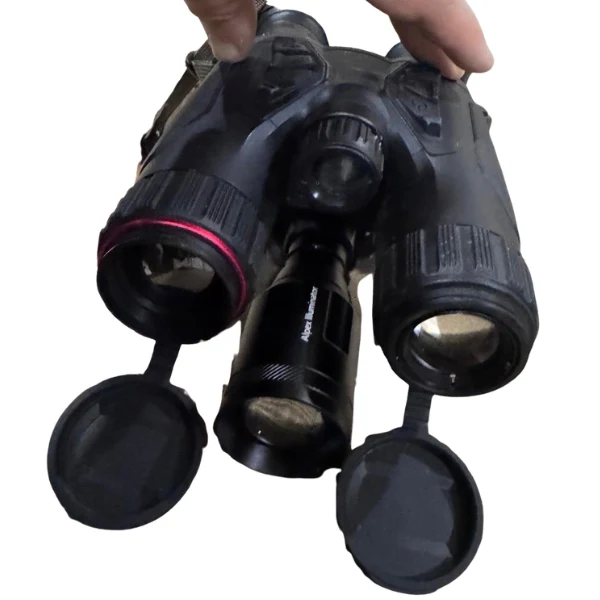

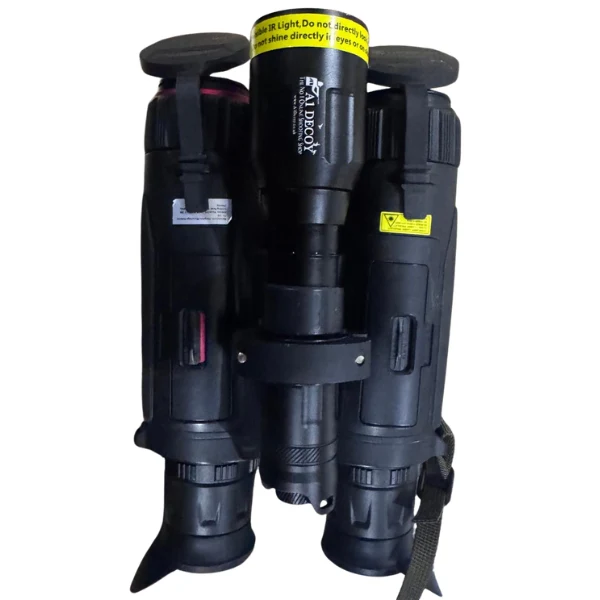

Habrok Torch Mount

• 【Non-Slip & Stable】The base of the mount features a non-slip rubber design that acts as a pressure component. A scratch-resistant protective layer increases friction to prevent your action camera from falling off or loosening.
• 【Standard 1/4"-Screw】The 1/4"-screw on the ball joint side. The bottom clamp can be mounted on tripods, table edges, etc., and supports adapters. Additionally, non-slip pads are located at the connection points to prevent wear and tear.
• 【Ultra-Wide Clamping Range】The screw of the camera mount is suitable for all tubular objects, poles, torches, handlebars, and tripods. Equipped with a special knob, it has a maximum opening width of 45 mm.
• 【Easy Installation】The mount is characterized by simple operation, quick and easy to use. It can be used in various situations. Simply fix it to the handlebar and then fasten it with the screw connection.

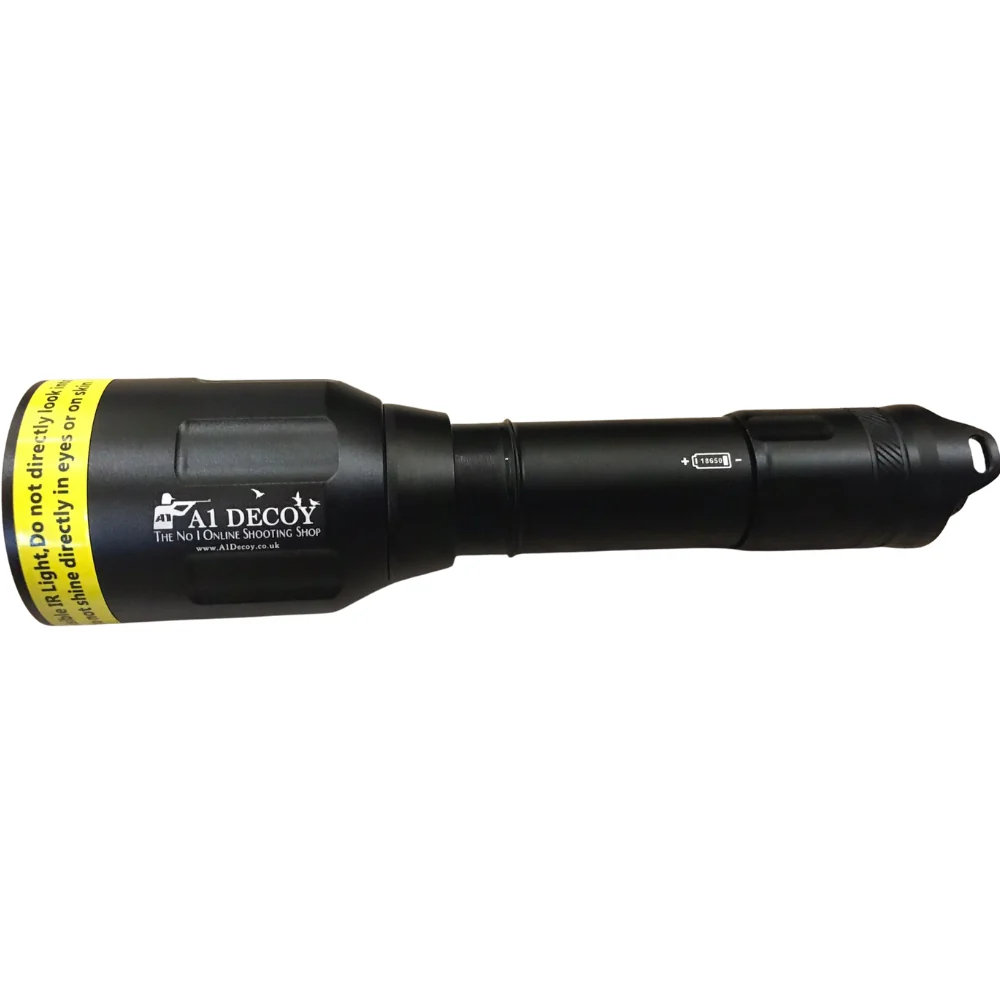

Alpex Illuminator Night Vision Infrared Torch

An infrared torch which works excellently alongside the HIKMICRO Alpex, comes with a carry case and lanyard and available in 850nm or 940nm, adjustable zoom and runs off 1x 18650 battery.

Adjustable mount kit also available with this torch, to see more CLICK HERE
